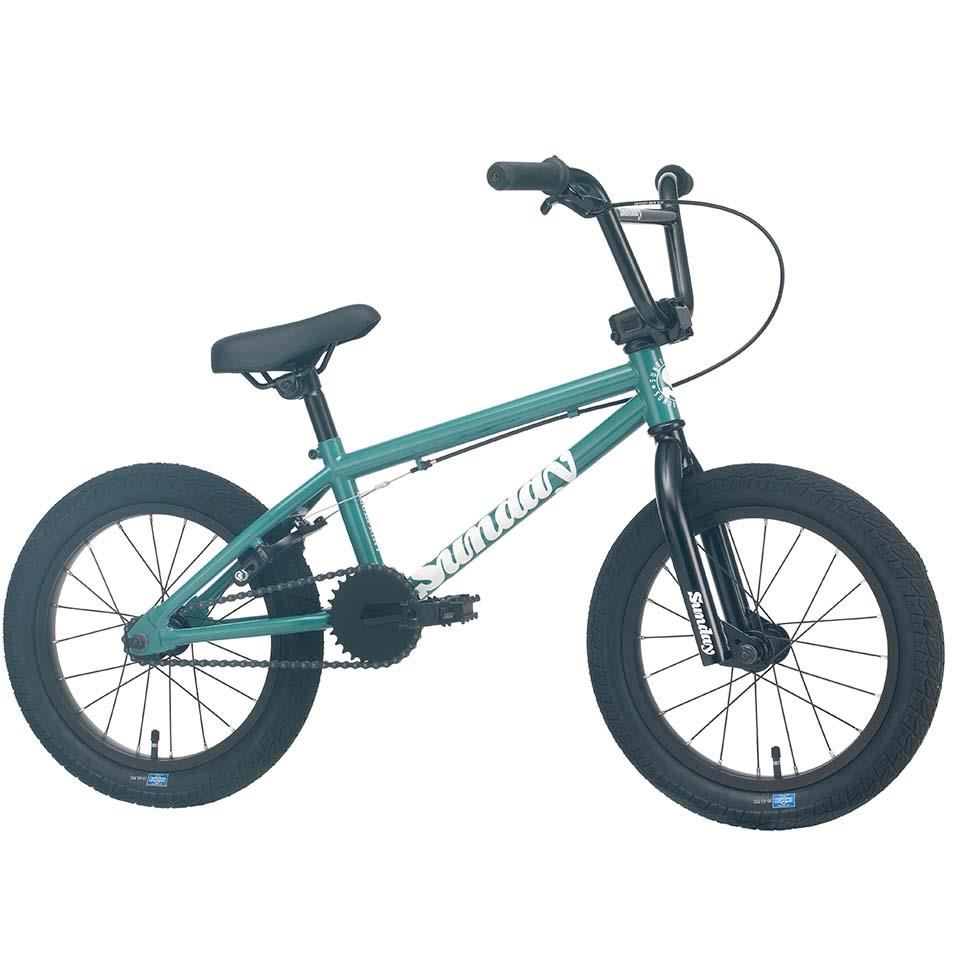

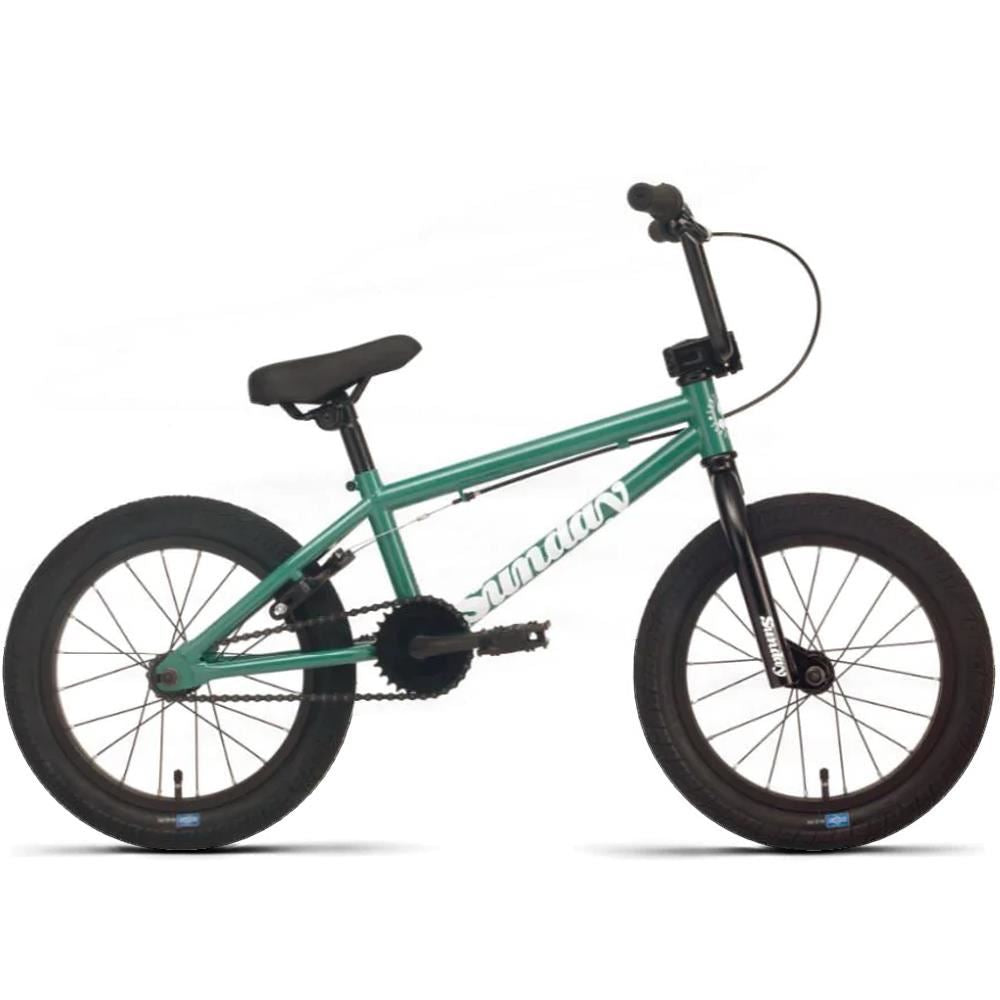

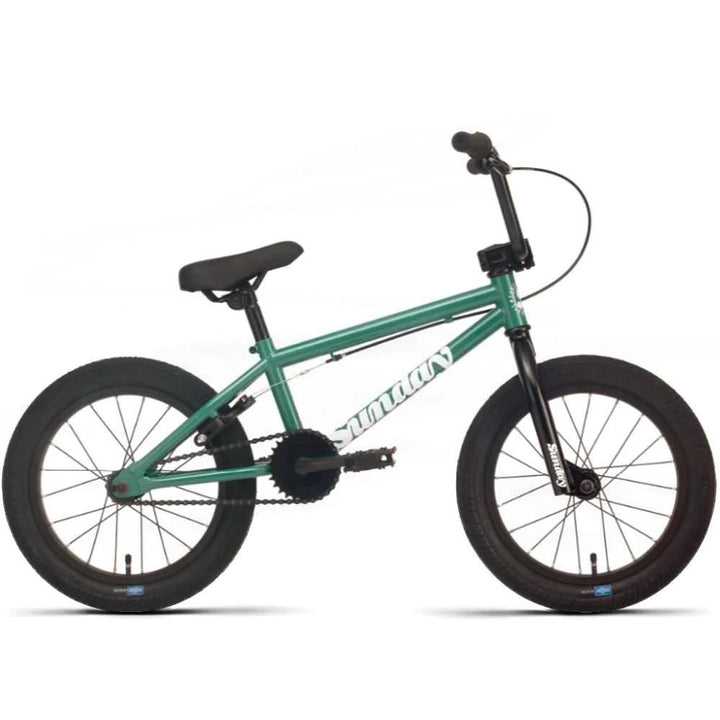

Sunday Blueprint 16" BMX Bike
Sunday Blueprint 16" BMX Bike
-
The Sunday Blueprint 16" BMX is built to get beginners learning the ropes or those stepping up a size feeling more comfortable on a bigger sized BMX.
1020 Hi-ten steel construction throughout the frame, fork and bars ensure the Blueprint is strong and durable perfect for beginners and progressing riders alike. While the majority of the parts on the Blueprint 16 are smaller they're made from the same materials and to the same specs as full sized parts.
A loose ball hub up front and loose ball freewheel hub in the back are laced to aluminium rims, wrapped in Sunday's Current tyres.
-
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free US Shipping Over $199*
- Complete Tracking On All Orders
- 90-day Returns Policy
- Free Stickers With All Orders
- *select bikes and bulky items ship with a $19.95 flat fee
Product Specs
- FRAME MATERIAL: 100% Hi-Ten Steel
- WHEEL SIZE: 16"
- TOP TUBE LENGTH: 15.5"
- CHAIN STAY LENGTH: 11.25"
- HEADTUBE ANGLE: 73.5°
- SEAT TUBE ANGLE: 71°
- FORKS: 100% Hi-Ten Steel
-
BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 6.75" Rise
- WIDTH: 23" Width - STEM: Alloy Front Load
- HEADSET: 1 1/8"
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: U-Brake
- FRONT HUB: 10mm Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: Freewheel Hub
- REAR RIM: Single Wall
- TYRES: 2.1"
- SPROCKET: 28t
-
CRANKS:
- MATERIAL: Alloy
- TYPE: 1-Piece
- ARM LENGTH: 115mm - BB: USA Loose Ball
- PEDALS: Plastic
- SEAT: Combo Seat/Post
- GEARING: 28/13
- WEIGHT: 21.74lbs (9.9kg)
Product Highlights
- Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
- Specifically designed for the smaller rider, just starting out in BMX
- Strong Hi-Ten steel construction
- Geometry designed with the smaller rider in mind
- Great spec for a BMX in this price bracket
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
| Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
|---|---|---|---|
| 2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
| 2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
| 3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
| 3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
| 4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
| 4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
| 5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
| 5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
| 6FT + | 180cm + | 20" | 20.75" + (L - XL) |
