S&M Reynolds Sig CCR Junior Frame

$549.95 In Stock

S&M Reynolds Sig CCR Junior Frame

Check all Stock availability
$549.95 In Stock
Earn Source Rewards points!
Add to Wishlist
Order In For Express Shipping Options!

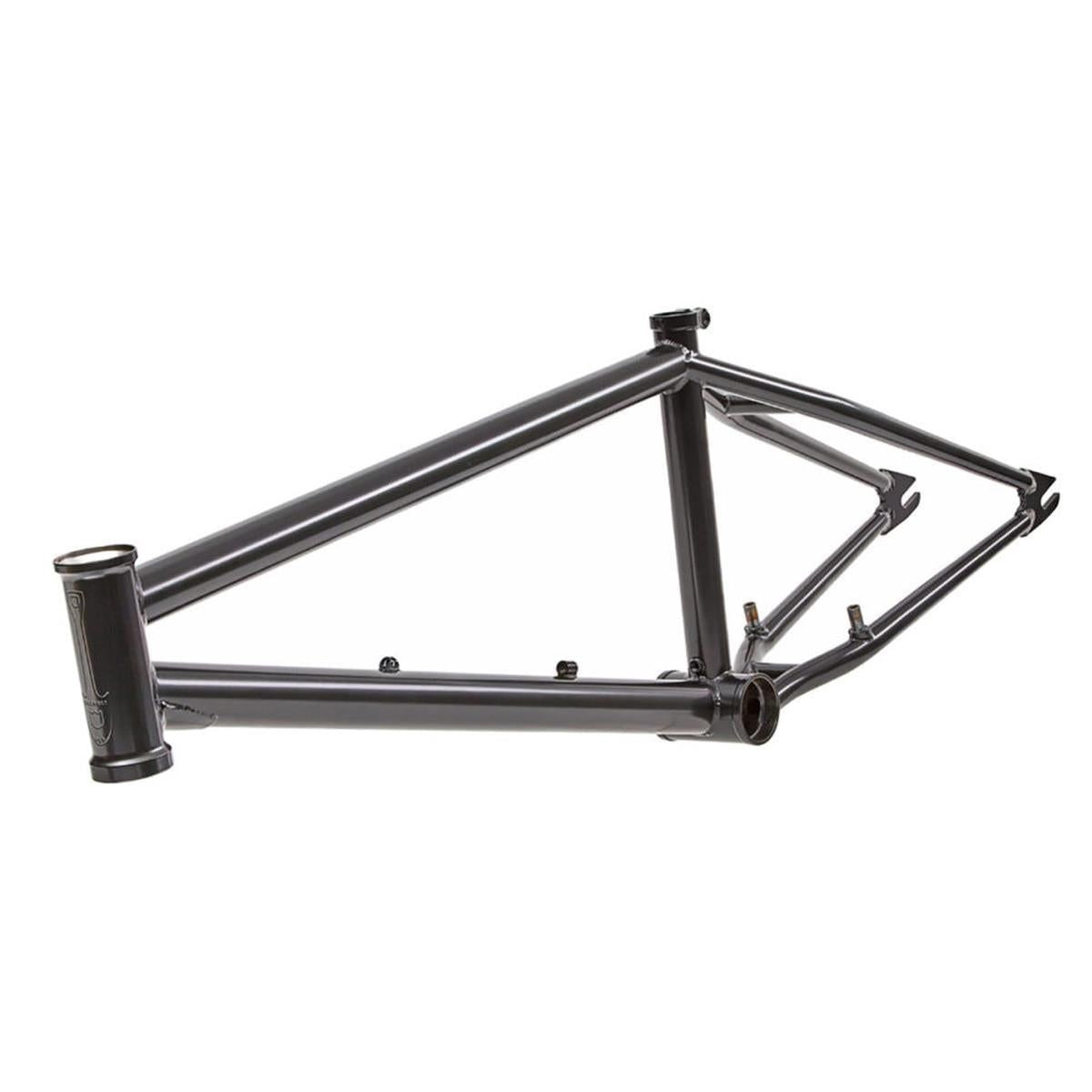

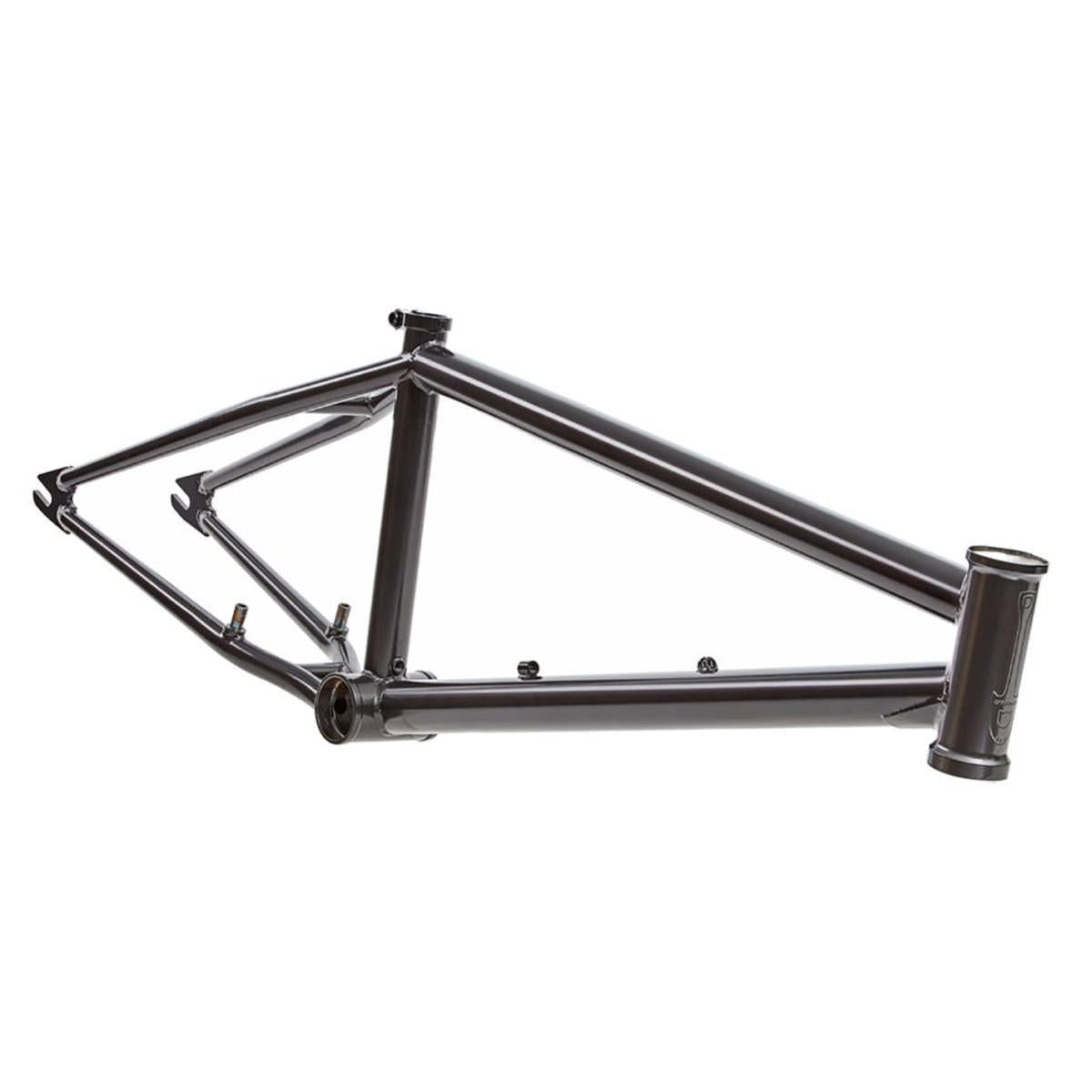

This more compact version of Clint Reynolds signature S&M CCR frame was inspired by one of S&M’s youngest rippers, Nate Hallahan. Perfect fit for the smaller lighter rider. “The shorter rear end is nice for manuals for the lighter or younger rider. The short top tube makes it so you aren’t reaching for the bars and makes the bike easier to move around all together” - Nate Hallahan Read more
  • S&M's Credence C.C.R Frame is Clint Reynolds approved and ready to take on any trails or bowls with ease, it's the ultimate BMX trails frame.

    Built in the USA from 100% 4130 chromoly the C.C.R Frame is real tough, if it can handle Clint's style of riding then you know you're in safe hands. The Junior model has slightly shorter top tube lengths and a shorter rear end.

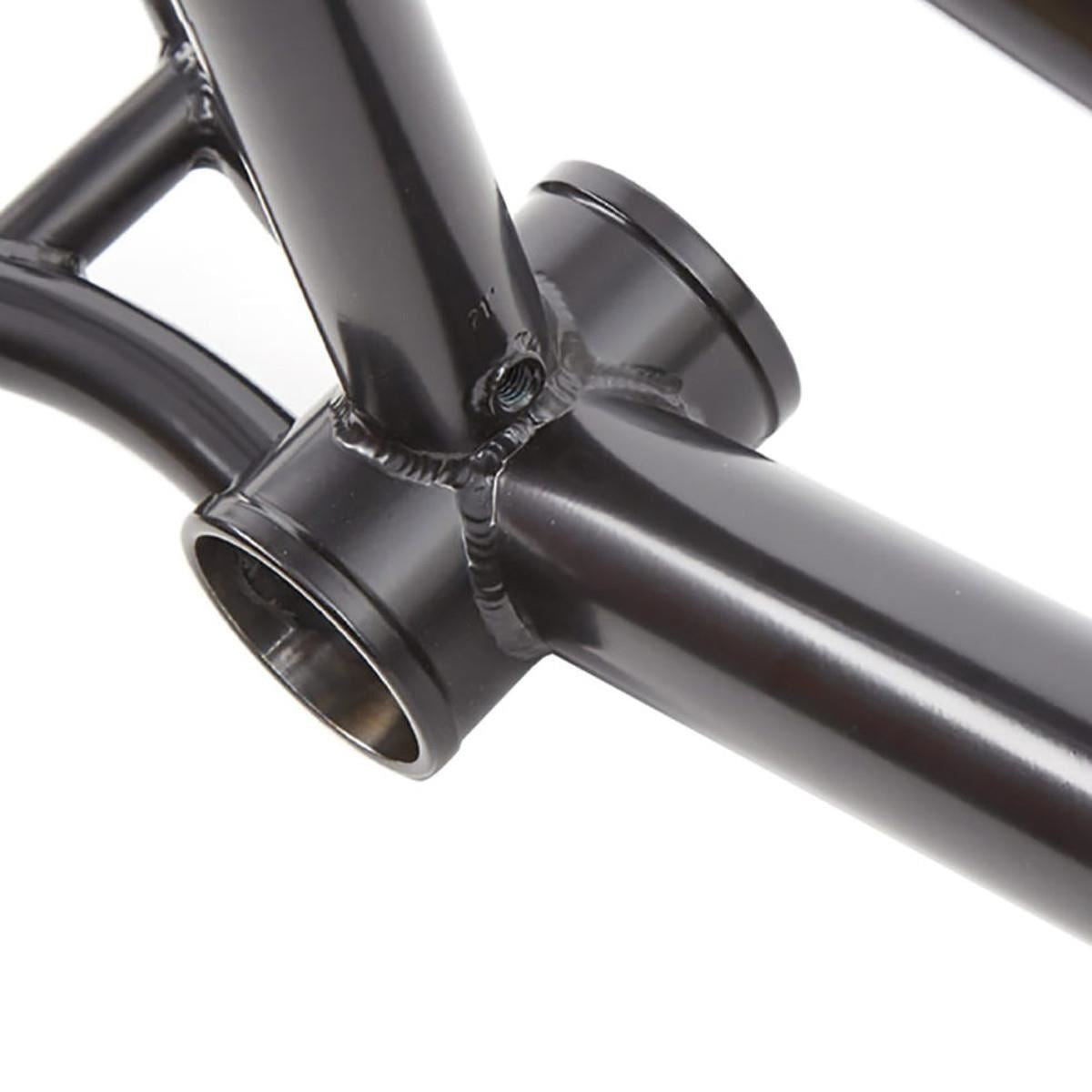

    The S&M Credence C.C.R Frame features a regular to short 13.9" rear end paired with a regular 74.25° headtube making it perfectly suited to trails. It also features a built in seat clamp, 10mm dropouts, tapered bullet tip stays and welded chain stay brake mounts.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free Shipping On All Orders Over $99.99*
    • Complete Tracking On All Orders
    • 90-day Returns Policy
    • Free Gifts With All Orders\ *select bikes and bulky items ship with a $19.95 flat fee

Product Specs
  1. MATERIAL: 100% Chromoly
  2. HEAD TUBE ANGLE: 74.25°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: TBC
  5. BB HEIGHT: 11.61"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9"
  8. DROPOUT SIZE: 10mm
  9. HEADSET TYPE: Integrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Welded
  12. GYRO TABS: None
  13. WEIGHT: 4.45lbs (2kg)

Product Highlights
  • Neutral geometry for responsiveness and stability
  • Great for all riding but excels at park riding
  • High-quality chromoly construction
  • Integrated head tube
  • Built with transition geometry

PRODUCT INSIGHT / S&M CCR JUNIOR FRAME

This more compact version of Clint Reynolds signature S&M CCR frame was inspired by one of S&M’s youngest rippers, Nate Hallahan. Perfect fit for the smaller lighter rider.

“The shorter rear end is nice for manuals for the lighter or younger rider. The short top tube makes it so you aren’t reaching for the bars and makes the bike easier to move around all together” - Nate Hallahan

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
