Kink Crosscut Frame

Regular price $379.99 In Stock

Kink Crosscut Frame

Check all Stock availability
Regular price $379.99 In Stock
Earn Source Rewards points!
Add to Wishlist
Order In For Express Shipping Options!

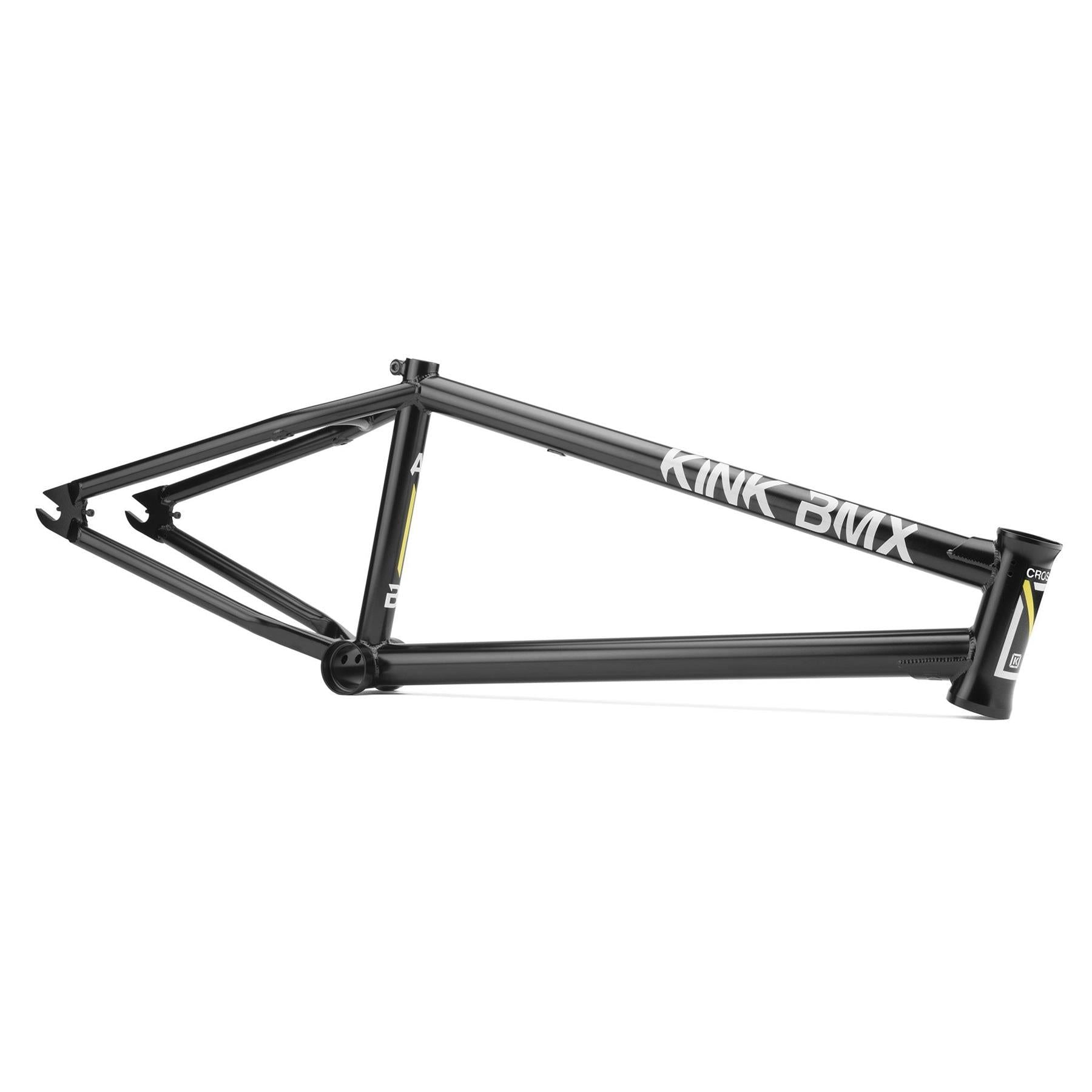

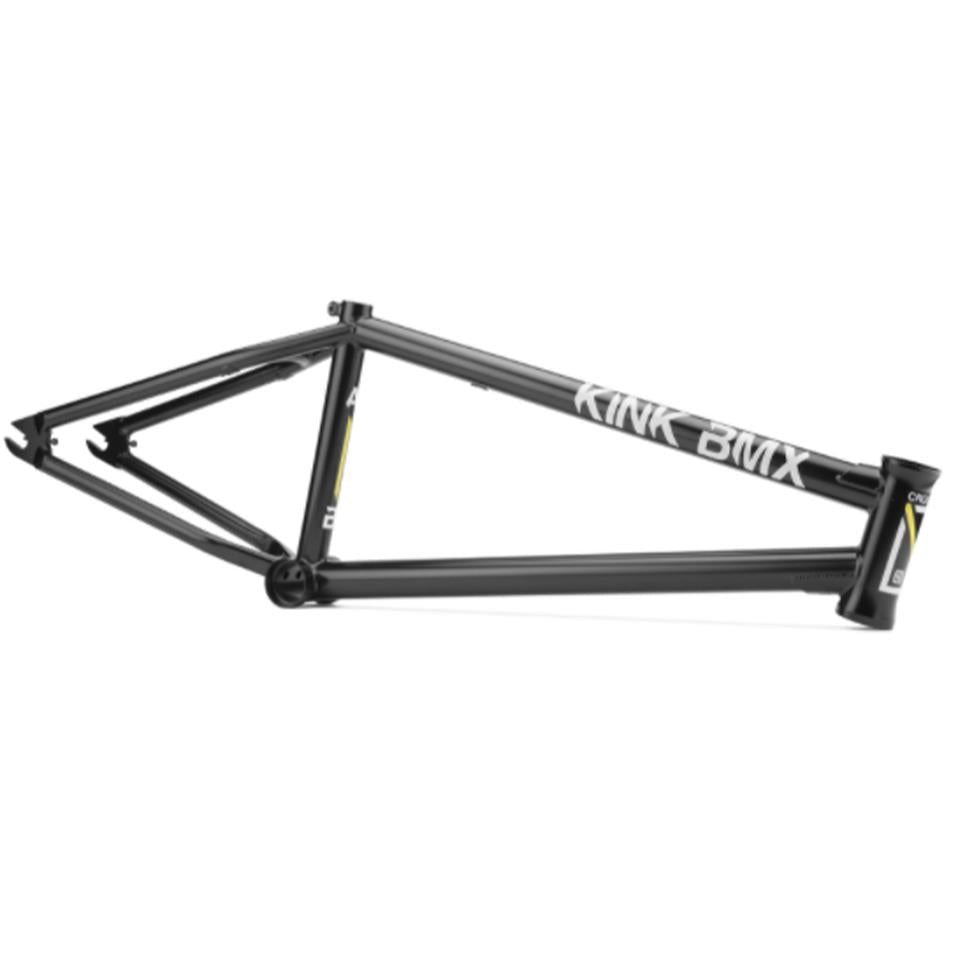

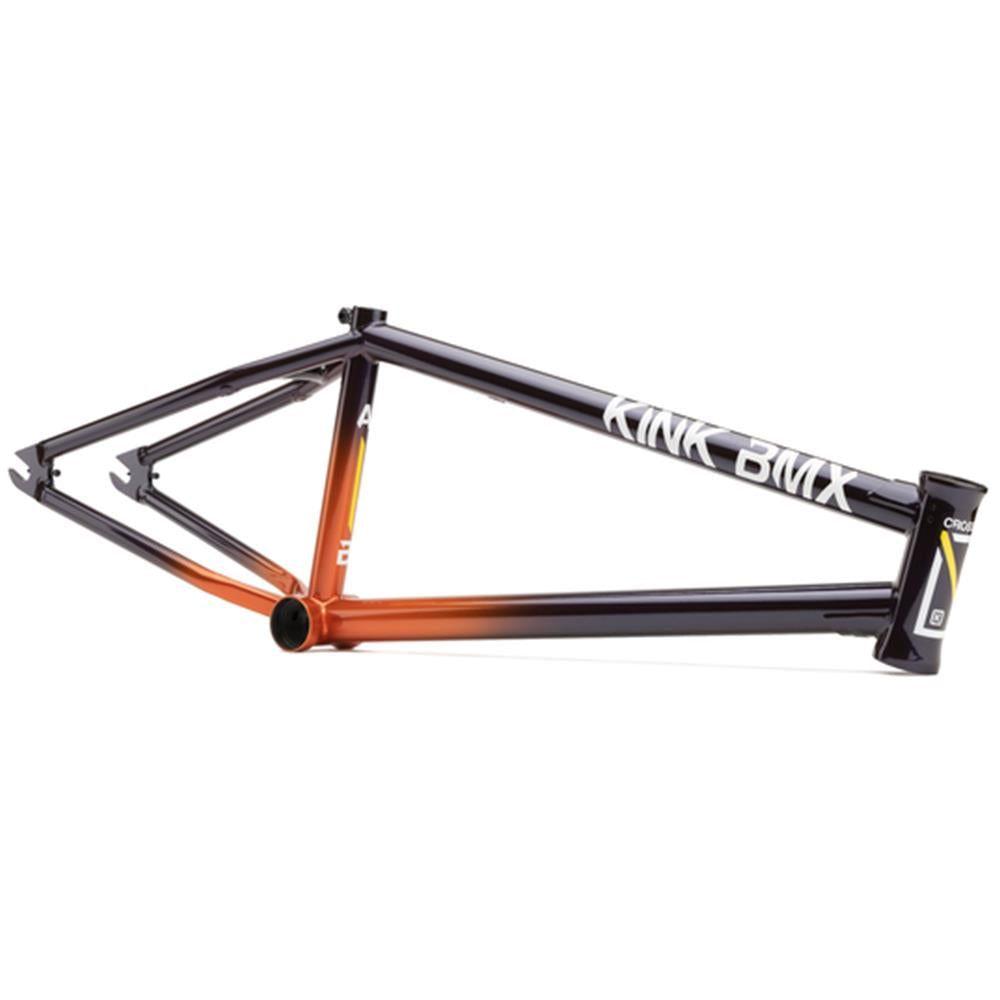

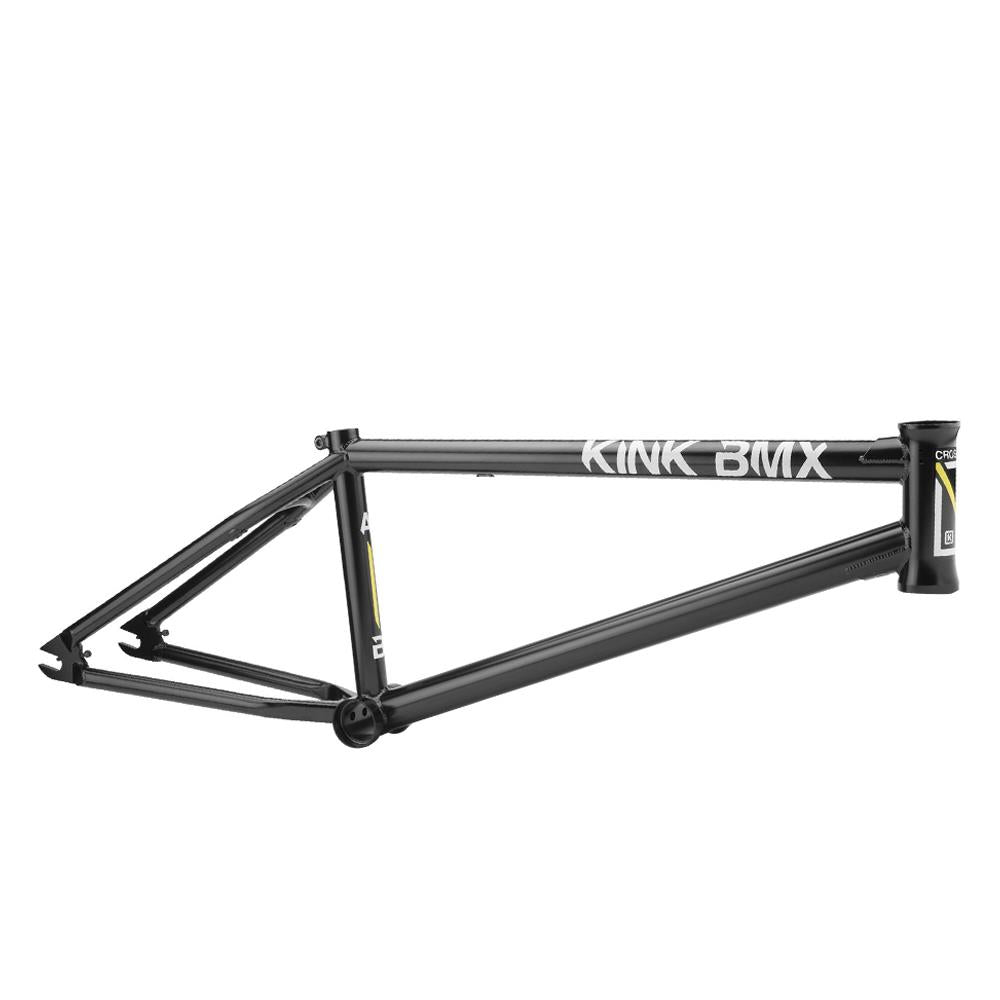

The well thought out geometry gives the Kink Crosscut a classic look with the responsiveness and versatility of a modern day street machine. Quick spins or whips, big tyre compatible and all while looking like a bike and not a scooter.
  • The Kink Crosscut is a modern-day beast of a frame. The double-butted toptube and downtube with both upper and lower gussets will stand up to the hardest riding, and the short 12.5” chainstay length and quick 75.5° headtube angle make this frame nice and nimble. The generous 9.25” standover height gives the frame a clean and traditional look, but with the aforementioned modern-day geometry. The investment cast chainstay yoke enables you to ride any modern tire size up to 2.55” and run your choice of 25t or 28t sprocket. This frame also comes standard with an integrated seat post clamp, integrated chain tensioners, and removeable brake mounts.

  • Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner

    Create price match request

    • Free US Shipping Over $199*
    • Complete Tracking On All Orders
    • 90-day Returns Policy
    • Free Stickers With All Orders
    • *select bikes and bulky items ship with a $19.95 flat fee

Product Specs
  1. MATERIAL: 100% 4130 Chromoly
  2. HEAD TUBE ANGLE: 75.5°
  3. SEAT TUBE ANGLE: 71°
  4. CHAIN STAY LENGTH: 12.5"
  5. BB HEIGHT: 11.6"
  6. WHEEL SIZE: 20"
  7. STANDOVER HEIGHT: 9.25"
  8. DROPOUT SIZE: 14mm
  9. HEADSET TYPE: Integrated
  10. BB TYPE: Mid
  11. BRAKE MOUNTS: Removable
  12. GYRO TABS: Removable
  13. WEIGHT: 5.4lbs

Product Highlights
  • Responsive Geometry with Short Backend and Steep Headtube
  • Best suited to Street and Park riding
  • High-quality Chromoly construction
  • Strong and durable investment cast chainstay yoke
  • Strong double butted tubing

UNDERSTANDING FRAME GEOMETRY

BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.

Keep reading to find your perfect frame, or click below to watch the buyers guide video.

FRAME SIZE CHART

Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!

3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) Rider Height (cm) Top Tube Length
5' 152 20"
5'3" 160 20.5"
5'6" 167 20.75"
5'9" 175 21"
6' 182 21.25"
6'6" 200  21.5"

FRAME GEOMETRY

Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
