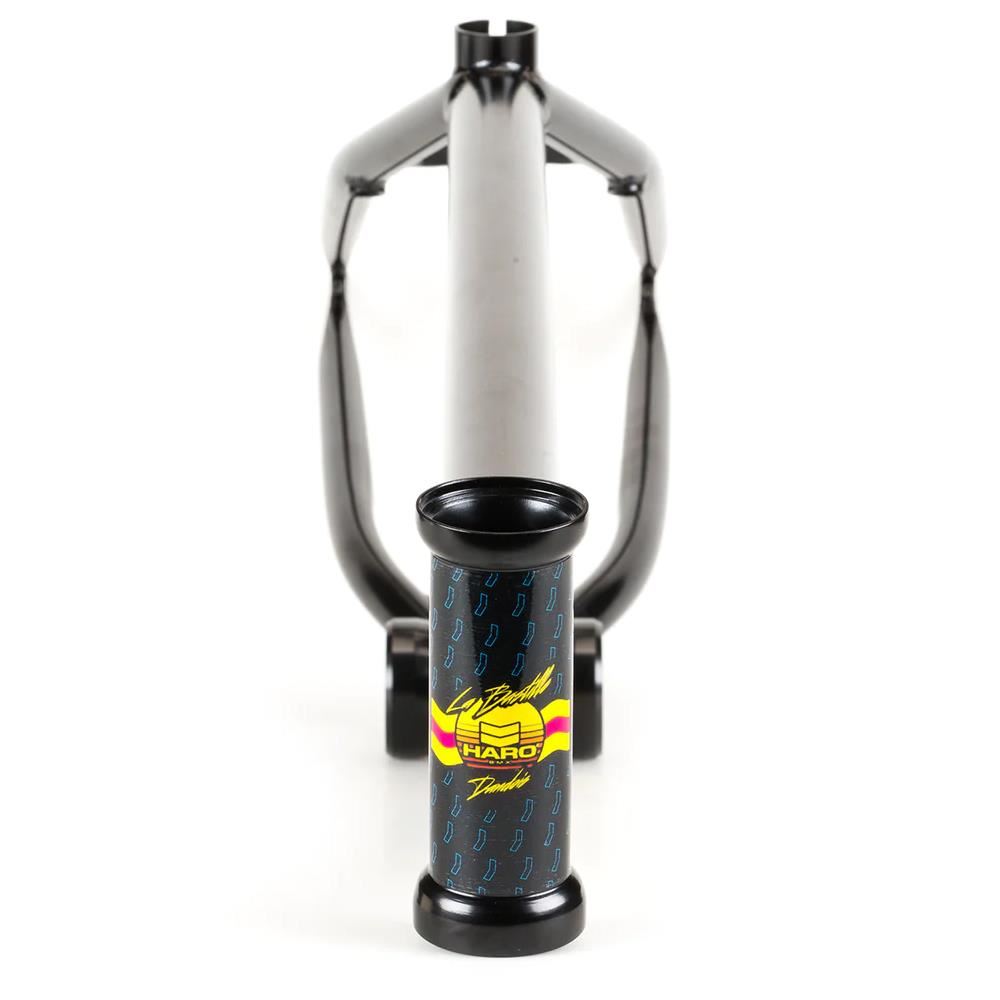

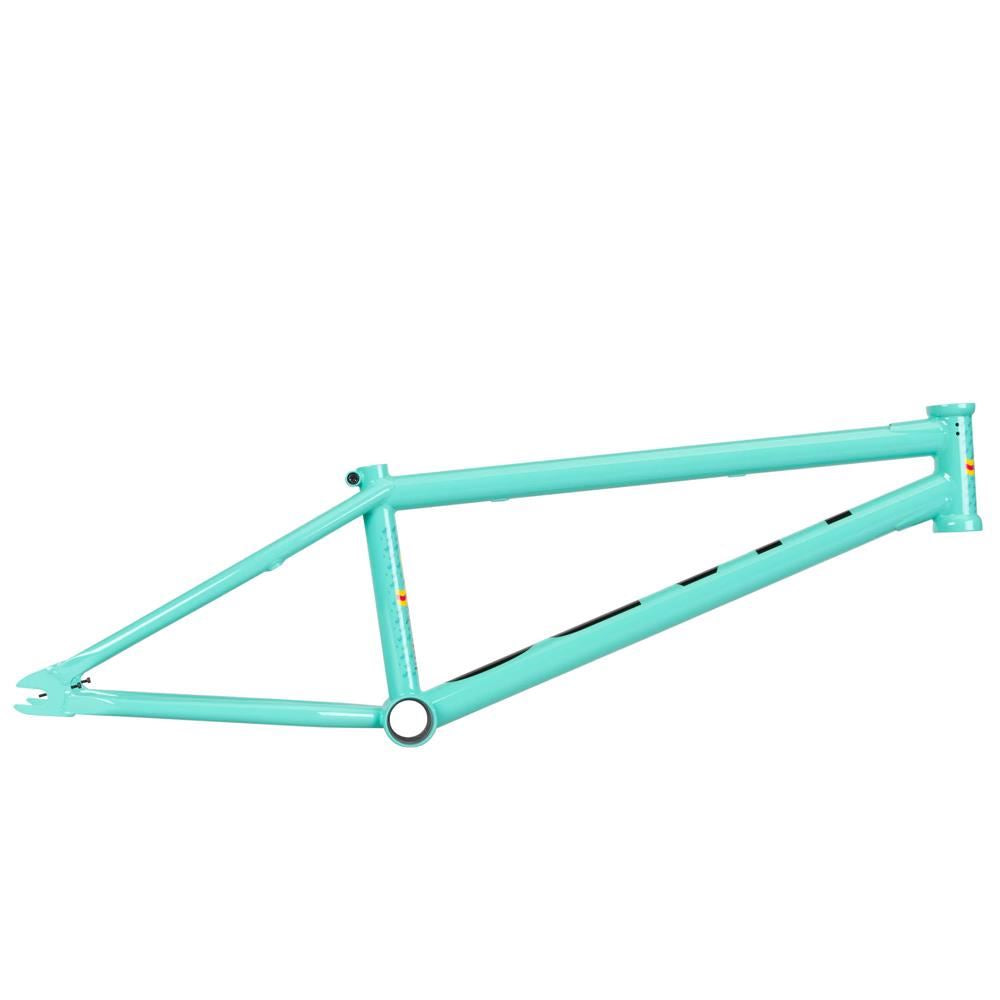

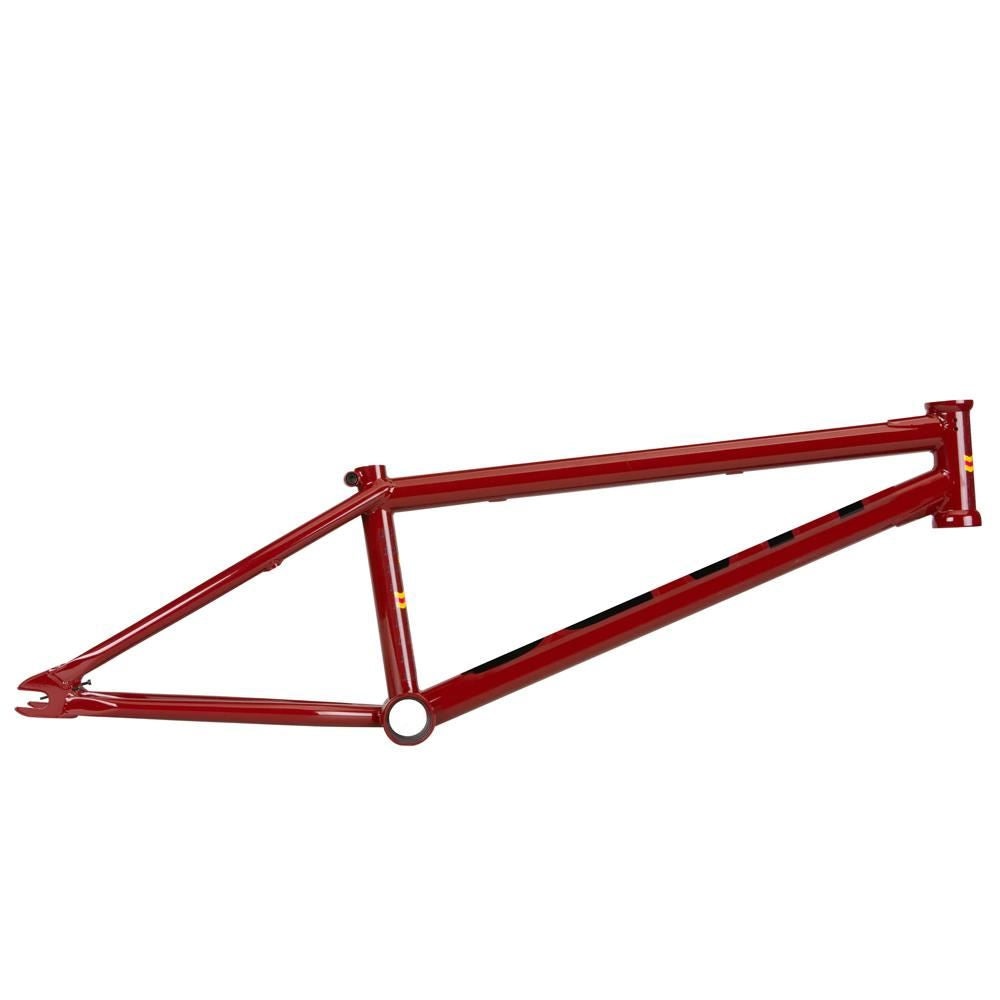

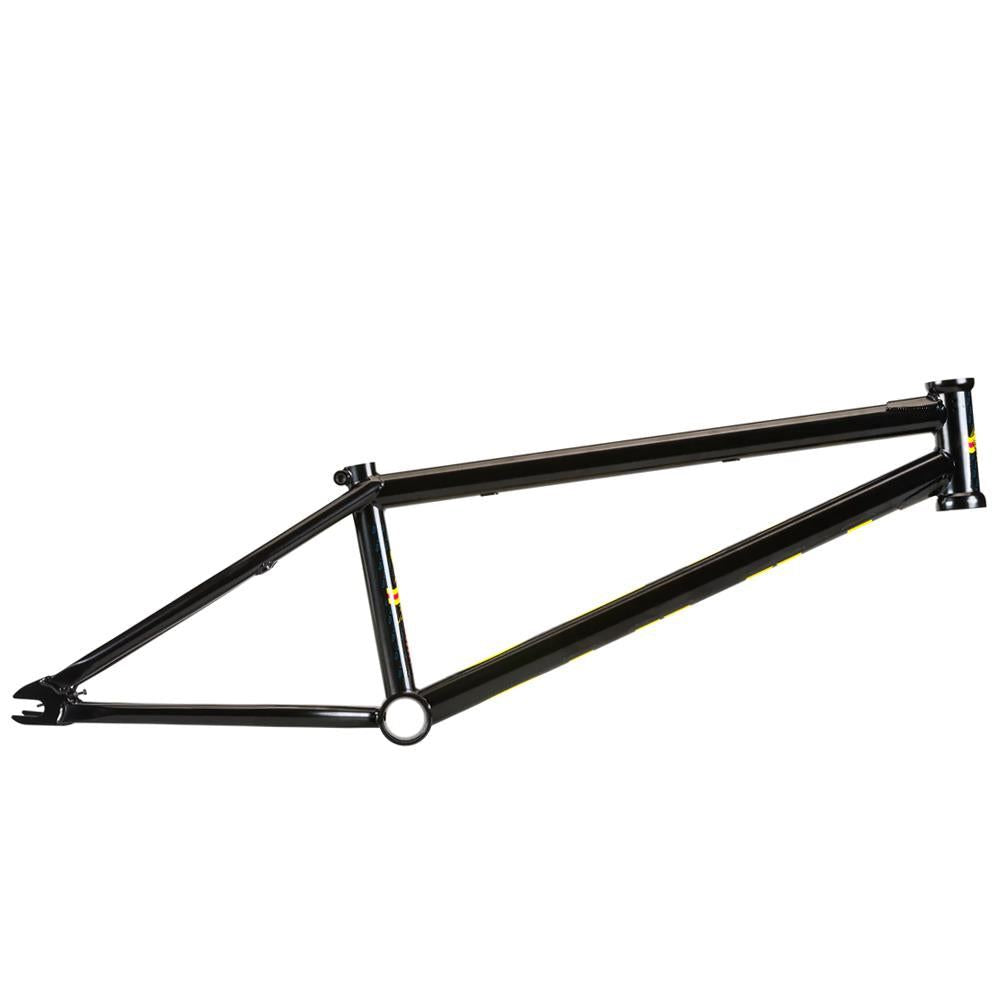

Haro LaBastille V2 Frame
Haro LaBastille V2 Frame
-
Haro's La Bastille V2 Frame was designed and built purely for the highest level of freestyle performance possible, it's quite literally a frame that can do it all.
The La Bastille V2 Frame was designed by flatland world champion, Matthias Dandois, making sure this bike is at home with the most technical flatland riding imaginable as it is in the streets, on ramps or at the trails.

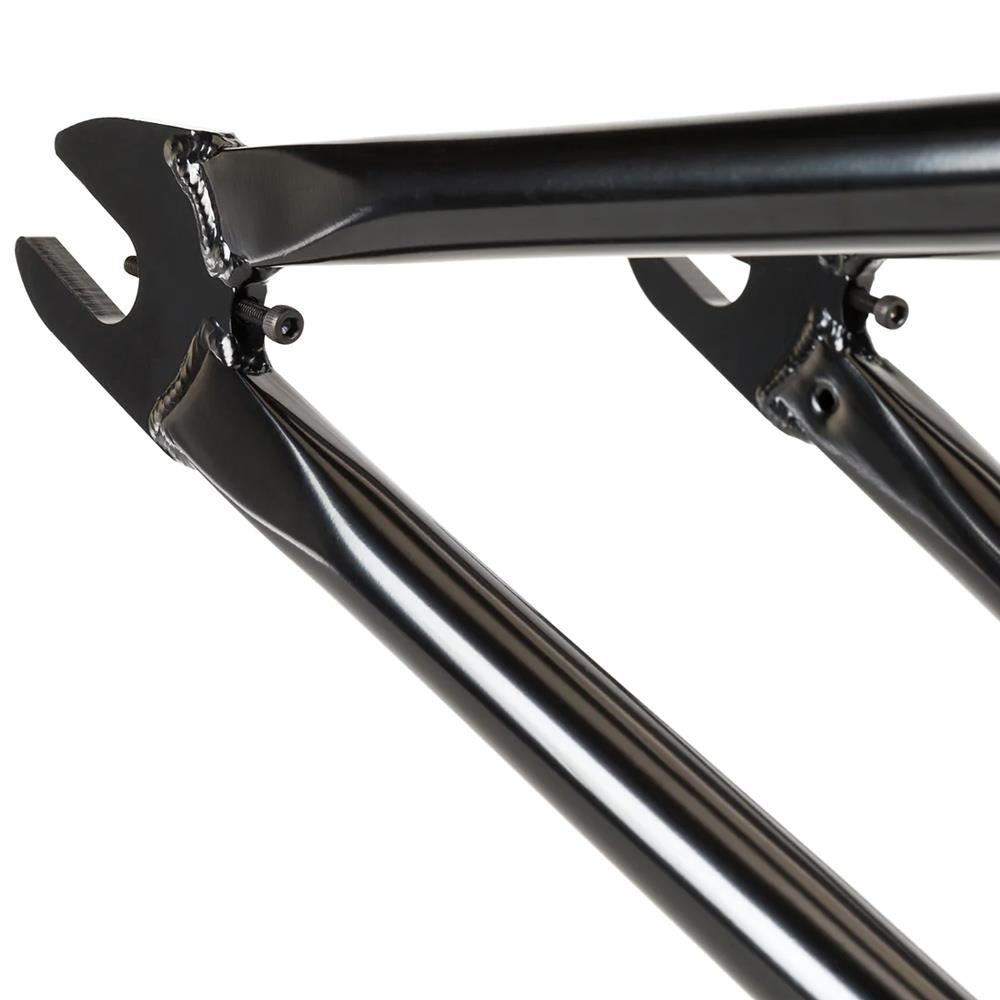

Constructed from full 4130 chromoly with double-butted top and down tubes giving the La Bastille strength and durability to take on anything, with an integrated headtube and an hourglass shaped mid BB. To finish the La Bastille has butted and tapered seat stays for added foot and peg clearance with 6mm dropouts with built in chain tensioners.
Product Specs
- MATERIAL: 100% Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 12.75"
- BB HEIGHT: TBC
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: TBC
- DROPOUT SIZE: 10mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: None
- WEIGHT: 4.8lbs (2.2kg)
Product Highlights
- Neutral geometry for responsiveness and stability
- Great all round frame for all types of riding
- High-quality chromoly construction
- Integrated head tube
- Built in chain tensioners
UNDERSTANDING FRAME GEOMETRY
BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.
Keep reading to find your perfect frame, or click below to watch the buyers guide video.
FRAME SIZE CHART
Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
| Rider Height (in) | Rider Height (cm) | Top Tube Length |
|---|---|---|
| 5' | 152 | 20" |
| 5'3" | 160 | 20.5" |
| 5'6" | 167 | 20.75" |
| 5'9" | 175 | 21" |
| 6' | 182 | 21.25" |
| 6'6" | 200 | 21.5" |
FRAME GEOMETRY
Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
Head tube angle determines the angle of your forks. A steeper HT (i.e 75°and higher) will make the bike turn quicker than a mellower angle (i.e 74.5 and lower°). The more responsive the frame, the more twitchy it will feel, especially at high speed!
Seat tube angles don’t vary too much (around 71°) and affect the centre of gravity. The steeper the angle, the shorter your bike will feel. Some frames have a mellower seat tube angle (example 69˚) which makes for a longer frame without actually being longer and reduces how fast your frame turns.
The chain stay is essentially the length of the rear end of the bike. A shorter CS length will make the bike more responsive and a longer one more stable. As a rough guide a 13.5" long chain stay is about average.
Stand over height is essentially how high your frame is. A frame with a low standover height is more responsive and easier to 'throw around' whilst a high SO height is more stable; particularly useful when going fast.
